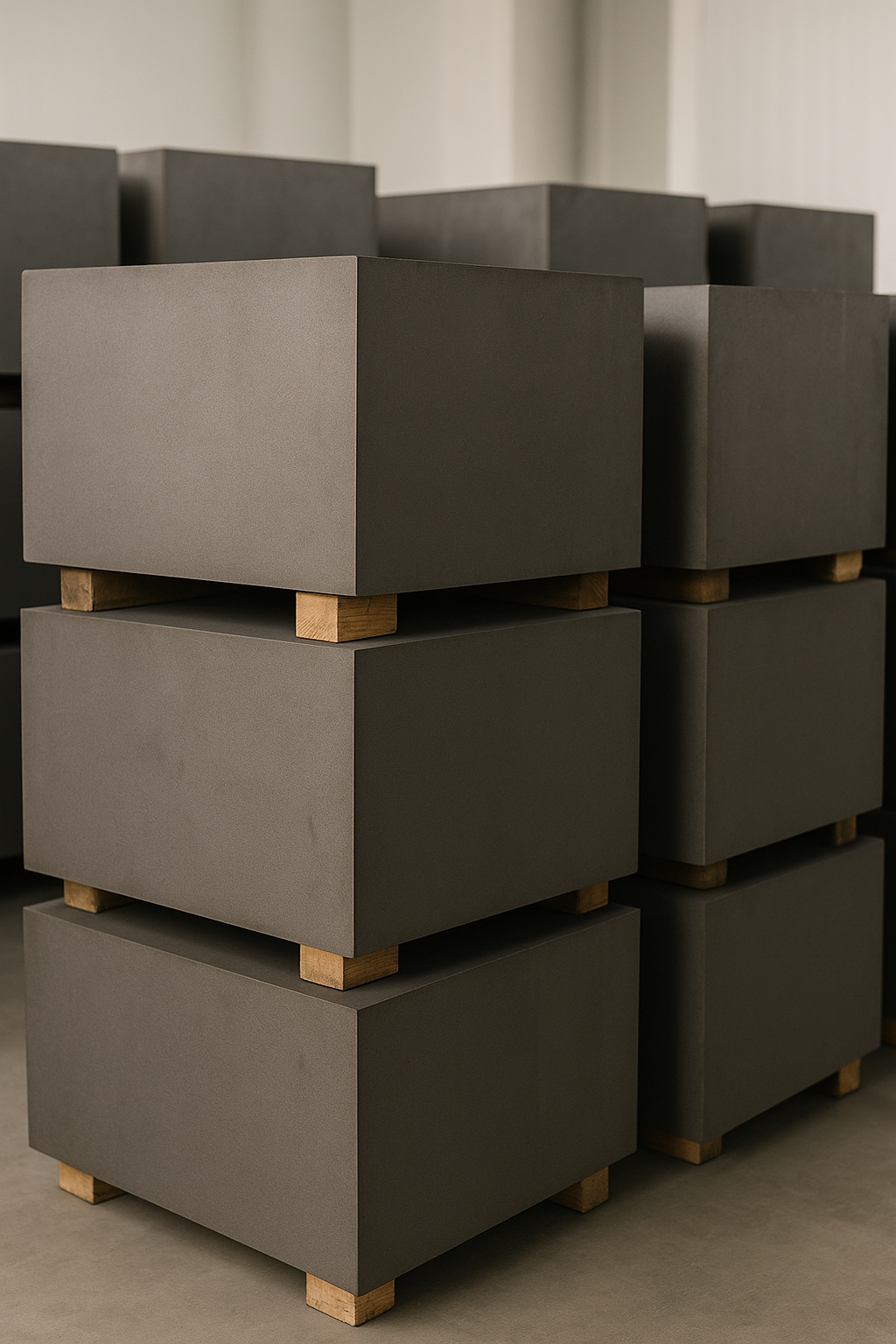

Vibration Graphite

BZNCarbon supplies premium-quality vibration molded graphite, also known as vibrated graphite, in various grades and sizes. Our products are recognized globally for their structural consistency, performance stability, and versatility across high-temperature and corrosive environments.

Get a Quote

What is Vibration Graphite?

Vibration graphite is manufactured by compacting graphite powder using vibration molding, resulting in homogeneous structure, large-size blocks, and fine mechanical strength. The properties of vibration graphite can be further improved by:

Resin impregnation
Anti-oxidation treatment

Applications

Vibration graphite is widely used in:

Photovoltaic industry (e.g. polycrystalline silicon production)
Monocrystalline silicon furnace insulation and heating components
Casting molds, ceramics, and refractory applications
Non-ferrous metal smelting
Chemical processing equipment
Electronics, EDM, metallurgy

Key Features

Uniform fine structure
Excellent thermal & electrical conductivity
High strength and oxidation resistance
Stable in extreme temperature conditions
Available in large block sizes

Technical Data – Vibrated Graphite Grades

Grade	Max Grain (mm)	Bulk Density (g/cm³)	Resistivity (μΩ·m)	Bending Strength (MPa)	Compressive Strength (MPa)	Thermal Conductivity (W/m·K)	CTE (10⁻⁶/°C)	Ash (%)	Modulus (GPa)
BZN-1	0.8	1.73	7.5	12.5	27	150	2.2	0.09	—
BZN-2	0.8	1.76	7.0	13.5	34	160	2.1	0.09	—
BZN-A	2	1.60	10.5	6.5	18.5	—	2.4	0.09	7.5
BZN-B	4	1.58	10.5	7.0	18	—	2.4	0.09	7.5
BZN-C	8	1.58	11.5	7.5	17	—	2.4	0.09	7.0
BZN-1A	2	1.75	7.5	9.5	31	—	2.3	0.09	9.5
BZN-1B	4	1.73	7.5	10.0	30	—	2.3	0.09	9.5
BZN-1C	8	1.72	8.5	12.5	31	—	2.3	0.09	9.0
