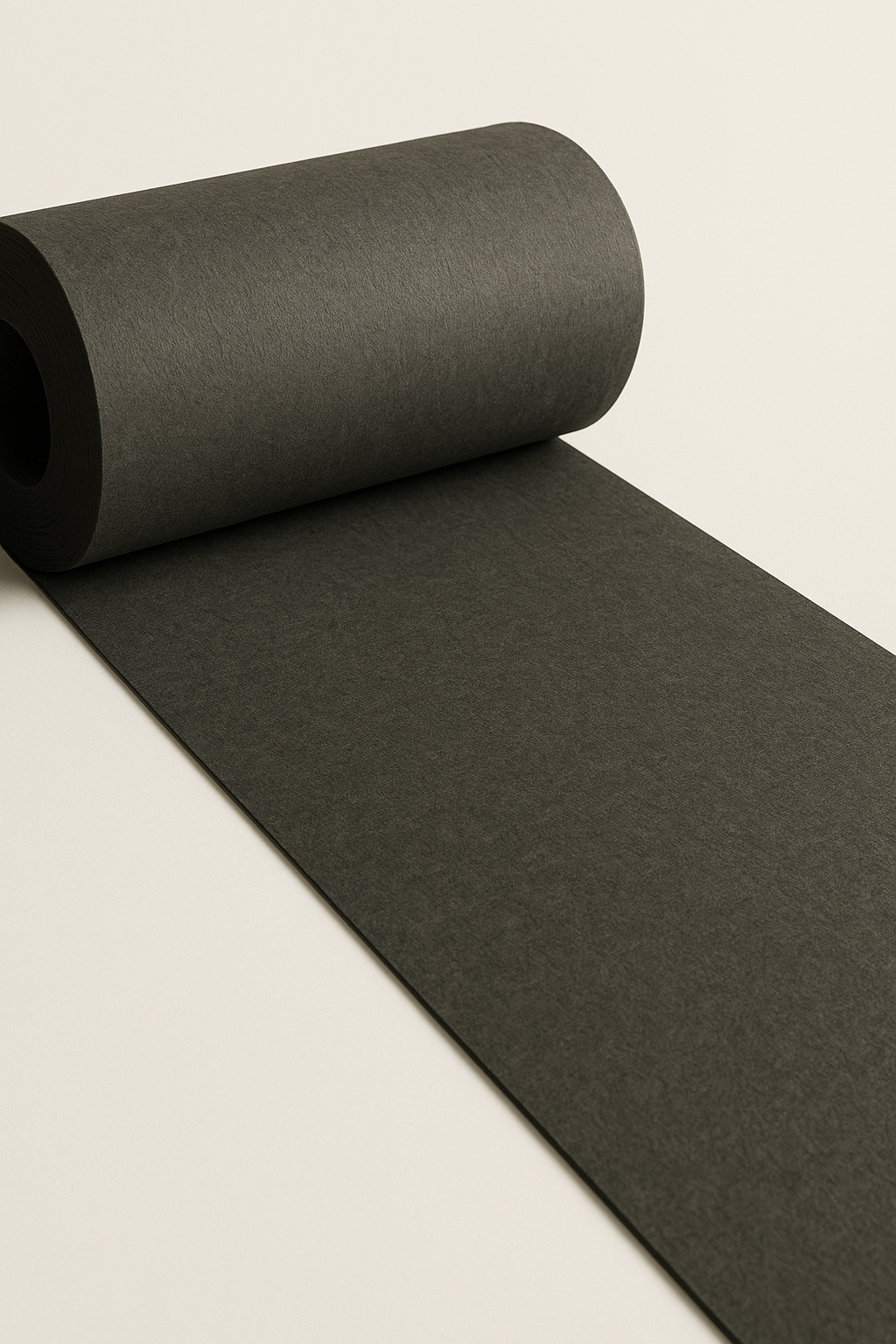

Rayon Based Graphite Felt
BZNCarbon’s rayon based graphite felt is manufactured from viscose fiber derived from purified cellulose (from wood pulp or cotton linters) and processed into high-performance carbon felt via wet spinning and graphitization.
Our rayon-based graphite felt offers exceptional thermal insulation, low thermal conductivity, high purity, and excellent flexibility. It is ideal for applications requiring clean, stable, and durable thermal management at extremely high temperatures.
Description
Rayon graphite felt is engineered to perform in high-temperature environments up to 2800°C under inert atmospheres. It exhibits superior heat resistance, low ash content, no oil contamination, and smooth texture. Its fine fiber structure (15.5 μm) ensures consistent performance for demanding vacuum and furnace systems.
Application Areas
High-temperature vacuum and inert gas furnaces
Semiconductor and crystal growth processes
Aerospace thermal insulation
Battery and energy storage equipment
Thermal shielding in R&D and nuclear labs
Technical Specifications – RSF-3-2200 (Rayon Soft Felt, Processed at 2200°C)
| Property | Value |
|---|---|
| Carbon Content | 99.5 – 99.9% |
| Ash Content | 0.1 – 0.5% |
| Bulk Density | 0.08 – 0.12 g/cm³ |
| Fiber Diameter | 15.5 μm |
| Thermal Conductivity | 0.026 W/m·K |
| Specific Resistance | 0.12 – 0.16 Ω·cm |
| Tensile Strength | 0.10 – 0.12 MPa |
| Processing Temperature | ≥2200°C |
| Application Temperature | ≥2200°C (Vacuum), ≥2800°C (Inert) |
Available Sizes – Rayon Graphite Felt
| Parameter | Options |
|---|---|
| Thickness | 1.5 / 2.6 / 3 / 5 / 6 / 8 / 10 / 12 / 12.5 mm |
| Width | 1000 / 1200 / 1300 / 1400 mm |
| Length | 10 – 100 meters (customized as required) |
Special sizes can be produced upon customer request.
Packaging and Storage
Rolled and packed in plastic film, then boxed
Store in dry, well-ventilated environments
Classified as non-dangerous goods
