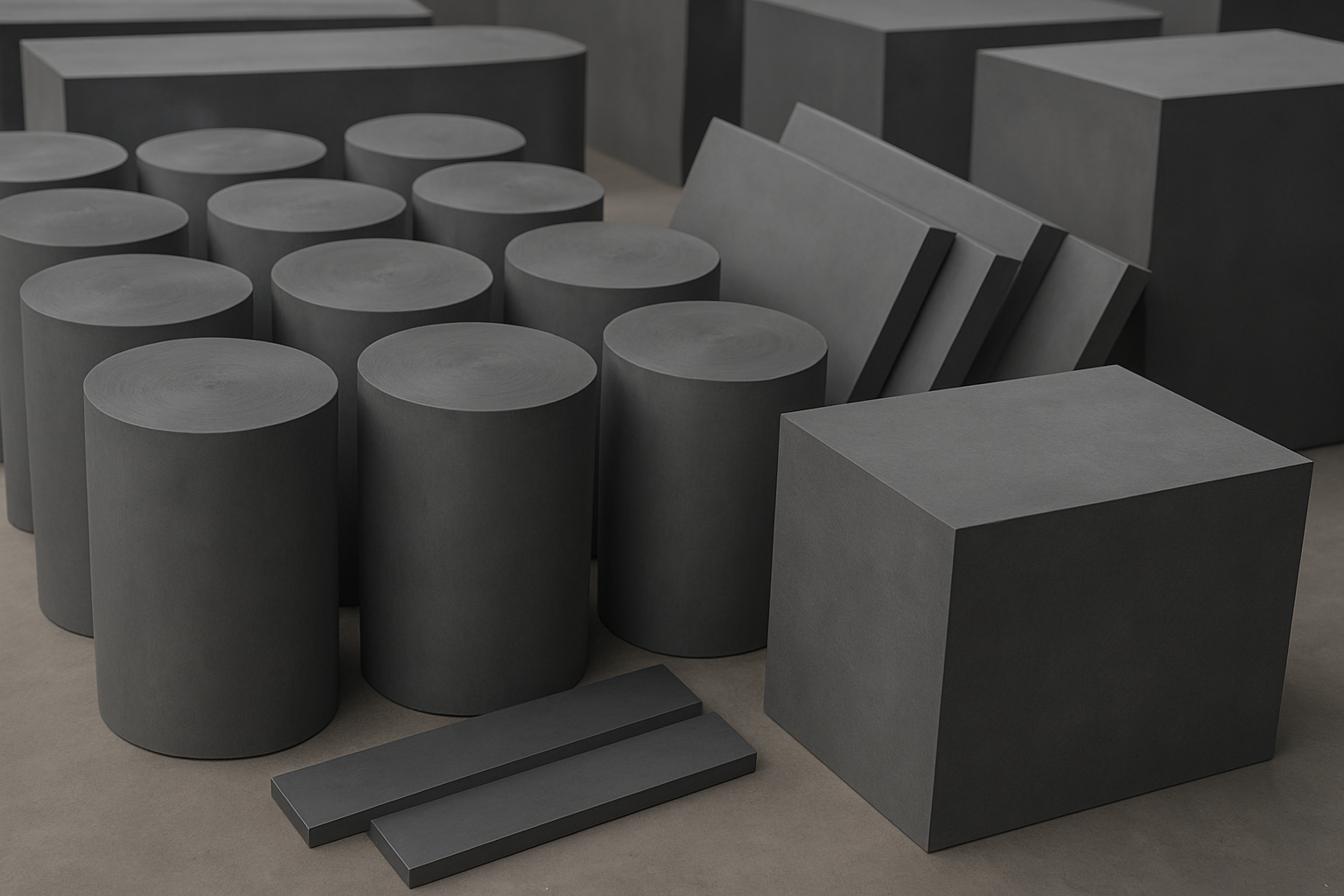

Available Product Types

We manufacture and supply:

Graphite rods
Graphite blocks
Graphite plates
Cut-to-size graphite sheets
Graphite tubes and pipes

Graphite materials available:

Isostatic graphite
Molded graphite
Extruded graphite
Vibration graphite
Mechanical graphite
Carbon brush graphite

Key Features

Excellent thermal conductivity
Superior resistance to high temperatures and corrosion
High purity and low ash content
Self-lubricating and low thermal expansion
Uniform structure and easy to machine
Available in custom sizes and grades

Applications

Graphite rods, blocks, and plates are widely used in:

Aerospace and defense
Solar photovoltaic and semiconductor industries
Chemical processing and metallurgy
Glass and ceramic manufacturing
Spark erosion (EDM)
Furnace parts and crucibles
Electrode materials and sealing components

Technical Data – Isostatic Graphite Grades

Type	Grain Size (μm)	Density (g/cm³)	Hardness (Shore)	Resistance (μΩ·m)	Bending Strength (MPa)	Compressive Strength (MPa)	Thermal Conductivity (W/m·K)	C.T.E (10⁻⁶/°C)	Ash (%)	Porosity (%)
IFS-1A	14	1.68	51	13	38	86	–	–	0.05	18
IFS-1B	14	1.78	56	9–10	43	85	–	–	0.05	16
IFS-2A	12	1.85	46	9–12	45	85	120	2.5	0.04	–
IFS-2B	14	1.85	48	8.5	46	85	139	4.75	0.05	13
IFS-H6	14	1.90	53	8–9	55	95	140	5.10	0.05	11
IFS-W6	8	1.91	53	8–9	58	100	140	5.10	0.05	11
IFS-H7	8	1.85	65	11–13	51	115	85	5.60	0.05	11
IFS-H8	8	1.91	70	11–13	60	135	85	5.85	0.05	11
IFS-H1	14	1.75	42	8.5	38	65	121	6.46	0.05	17
IFS-H2	15	1.85	55	9	40	80	–	–	0.06	–

Note: Custom sizes and grades are available upon request. Properties may be adjusted by selecting different raw materials and manufacturing techniques.
