BZN Carbon supplies custom-engineered carbon carbon composite crucibles designed for extreme temperature applications. Manufactured with advanced carbon fiber reinforcement techniques such as 2.5D, 3D, and 4D structures, our CFC crucibles deliver superior thermal stability, durability, and cost-efficiency compared to conventional graphite crucibles.

These crucibles are especially suited for processes requiring minimal contamination, extended service life, and high mechanical strength at elevated temperatures.

What Is a Carbon Carbon Composite Crucible?
A carbon carbon composite crucible is made from carbon fibers embedded in a carbon matrix, typically reinforced in multiple directions (2.5D, 3D, 4D) to improve strength and longevity. These crucibles are engineered for use in environments exceeding 2000°C, where traditional ceramics or graphite may fail.

Applications
BZN Carbon’s crucibles are ideal for:

High-temperature vacuum or inert gas environments
Crystal growth (such as Czochralski and Bridgman methods)
Semiconductor and photovoltaic silicon processing
Metal smelting and sintering
Furnace linings and advanced ceramic firing
Research institutions and aerospace material testing

Why Choose BZN Carbon Crucibles?

Exceptional thermal shock resistance
Extended service life under extreme temperatures
Excellent resistance to chemical erosion
Low thermal expansion and high thermal conductivity
Significantly lower ash and impurity levels

Technical Specifications

Item	Unit	2.5D Spec Range
Bulk Density	g/cm³	1.55 – 1.70
Carbon Content	%	≥ 99
Tensile Strength	MPa	40 – 60
Tensile Modulus	GPa	25 – 30
Bending Strength	MPa	80 – 110
Compressive Strength	MPa	90 – 120
Shear Strength	MPa	50 – 60
Interlaminar Shear Strength	MPa	＞12
Thermal Expansion Coefficient	10⁻⁶/K	0.5 – 1.3
Thermal Conductivity	W/m·K	30 – 50
Processing Temperature	℃	＞2000
Specific Electrical Resistance	μΩ·m	15 – 30
Ash Content	ppm	≤100

Customization
At BZN Carbon, we manufacture crucibles in various shapes and sizes according to your technical drawings or prototypes. Whether you require cylindrical, conical, or complex geometries, we deliver precision components with reliable performance.

Click to enlarge

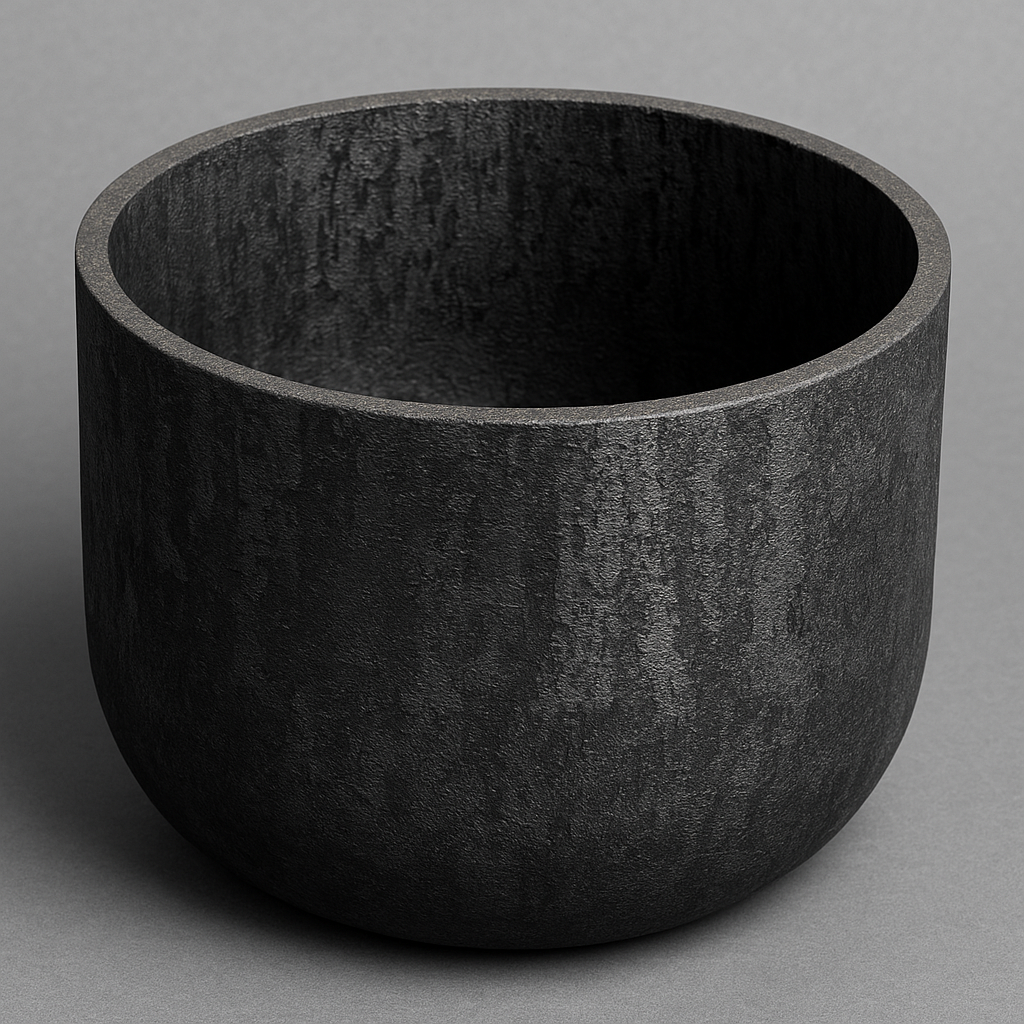

Carbon Carbon Composite Crucible

Buy high-performance carbon carbon composite crucibles from BZN Carbon. Ideal for high-temperature applications in semiconductor, photovoltaic, and metallurgy industries. Custom shapes available.

Category: C-C Composites Tag: Carbon Carbon Composite Crucible

Description

Item	Unit	2.5D Spec Range
Bulk Density	g/cm³	1.55 – 1.70
Carbon Content	%	≥ 99
Tensile Strength	MPa	40 – 60
Tensile Modulus	GPa	25 – 30
Bending Strength	MPa	80 – 110
Compressive Strength	MPa	90 – 120
Shear Strength	MPa	50 – 60
Interlaminar Shear Strength	MPa	＞12
Thermal Expansion Coefficient	10⁻⁶/K	0.5 – 1.3
Thermal Conductivity	W/m·K	30 – 50
Processing Temperature	℃	＞2000
Specific Electrical Resistance	μΩ·m	15 – 30
Ash Content	ppm	≤100
